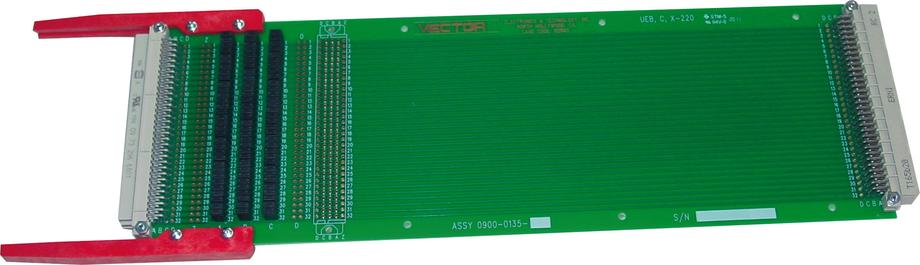

UEB220-3U, 3U, 96-pin DIN

3U, 3-row, 96 positions DIN 41612 style Uncommitted Extender

Shown 96-pin DIN 41612 (rows A, B, C) Connector

​​​Features

■  Uncommitted Extenders are strictly point-to-point with each

    row of pins isolated on separate layers

■  Jumpers are provided for interrupting each signal lines

■  Mounting pads for additional DIN connector or test points for

    attachment of test specimens on either side

■  Max. current per contact @ nominal 50° C = 1.75A

■  Voltage rating 200 RMS or 300 VDC

■  Suitable for 160mm or 220mm card depth

​Mechanical specifications

■  Board Height 3U ( 3.937") ( 100mm )

■  Board Length 11.75" ( 298mm)

■  PCB Thickness 0.062" (1.6mm)

■  Card Extender brackets included (arms) on top & bottom

    (P/N : 5210211, may also be ordered separately)

■  Expandable Height in multiples of 3U, i.e. 3U, 6U, 9U etc.

    can be achieved with mending plates

■  Mending plates sold separately

​Board specifications

■  Material : FR-4 Epoxy Glass

■  PCB UL94V-0, PCB RoHS Compliant

■  6 Internal 1oz. copper layers

■  PCB exposed Copper areas plated with Immersion Gold

Ordering Info​

■  Part Number : UEB220-3U
