LTM9100
Anyside™ High Voltage Isolated Switch Controller with I2C Command and Telemetry
Top
New Content (1)
Overview
Features and Benefits
- CSA (IEC/UL) Approved, File #255632
- Reinforced Insulation
- Integrated Isolated Power Supply
- Adjustable Turn-On Ramp Rate and Current Limit
- I2C/SMBus Interface
- 10-Bit ADC Monitors Current and Two Uncommitted Channels
- High Common Mode Transient Immunity: ≥ 30kV/μs
- Fault Status Alert and Power Good Outputs
- Independent 3V to 5.5V Logic Supply
- ±20kV ESD Across the Isolation Barrier
- Maximum Continuous Working Voltage: 690VRMS
- 14.6mm Creepage Distance
- Low Current Shutdown Mode (<10μA)

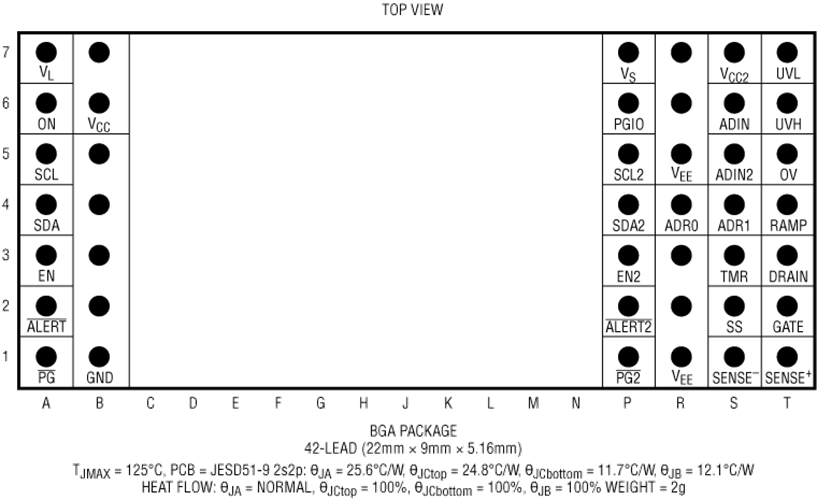

- 22mm × 9mm × 5.16mm BGA Package
Product Details

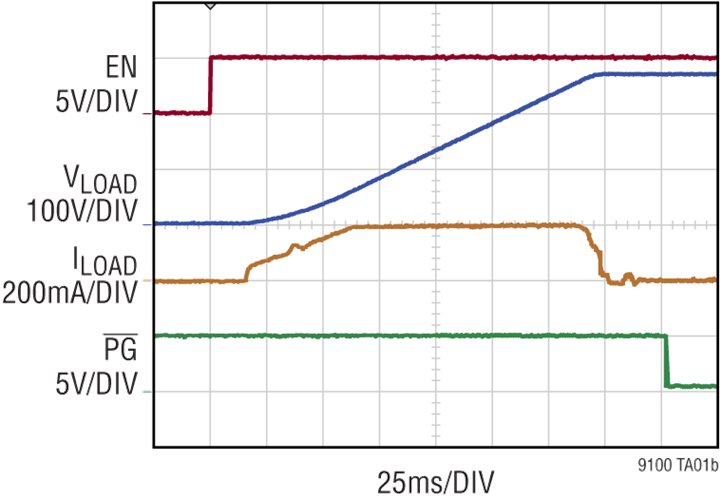

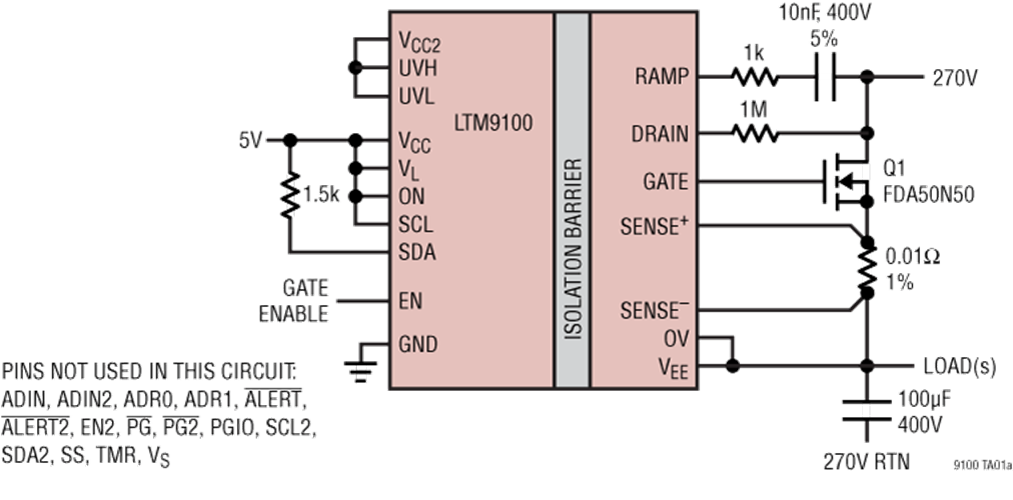

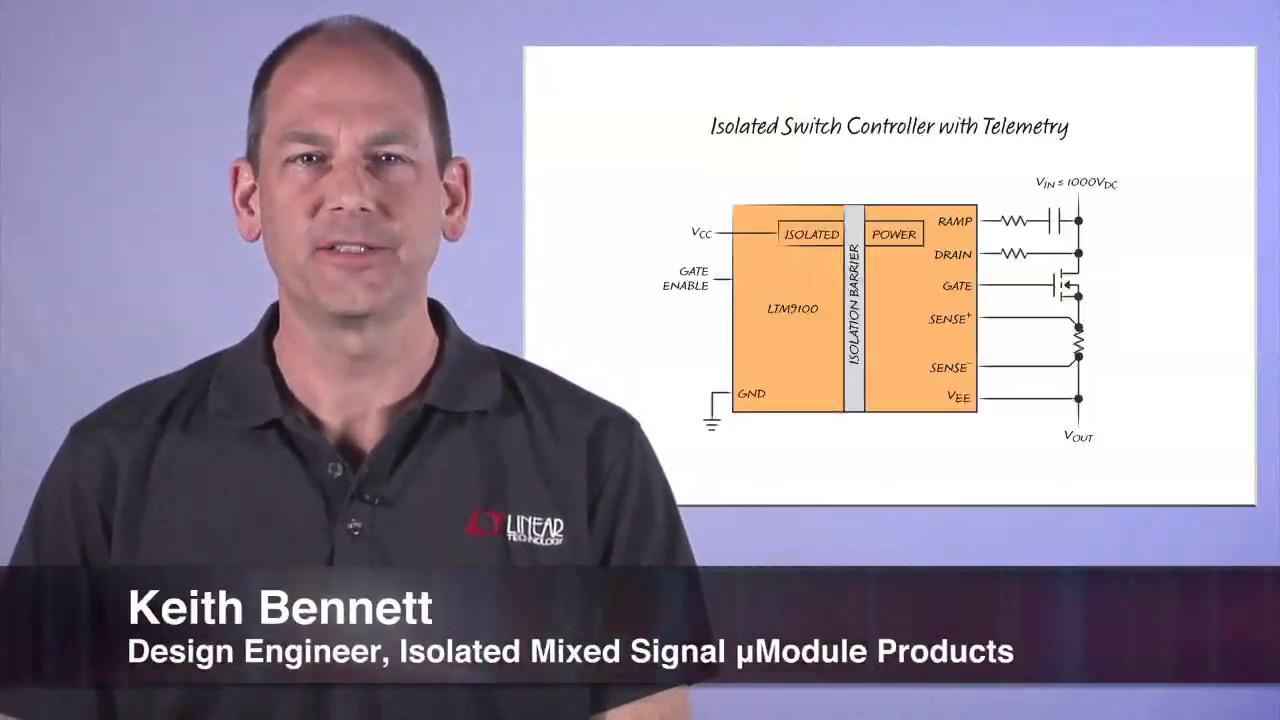

The LTM9100 μModule® (micromodule) controller is a complete, galvanically isolated switch controller with I2C interface, for use as a load switch or hot swap controller. The load is soft started and controlled by an external N-channel MOSFET switch. Overcurrent protection minimizes MOSFET stress during start-up, input step and output short-circuit conditions. Owing to the isolated, floating character of the switch, it is easily configured for use in high side, low side and floating applications.
A single 5V supply powers both sides of the switch controller through an integrated, isolated DC/DC converter. A separate logic supply input allows easy interfacing with logic levels from 3V to 5.5V, independent of the main supply. Isolated measurements of load current and two additional voltage inputs are made by a 10-bit ADC, and accessed via the I2C interface.
The logic and I2C interface is separated from the switch controller by a 5kVRMS isolation barrier, making the LTM9100 ideal for systems where the switch operates on buses up to 1000VDC, as well as for providing galvanic isolation in systems where a ground path is broken to allow large common mode voltage swings. Uninterrupted communication is guaranteed for common mode transients of up to 30kV/μs.
APPLICATIONS
- High Voltage DC Hot Swap
- Live Backplane Insertion
- Isolated Distributed Power Systems
- Power Monitors
- Industrial Control Systems
- Breaking Ground Loops
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

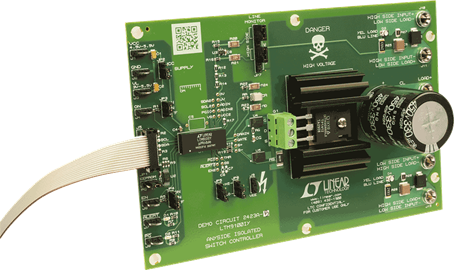

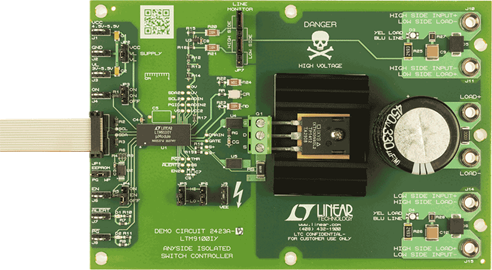

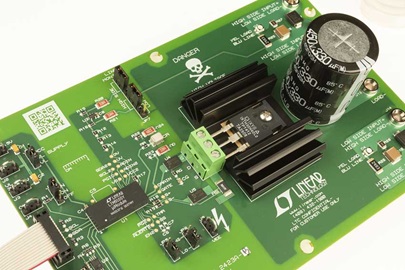

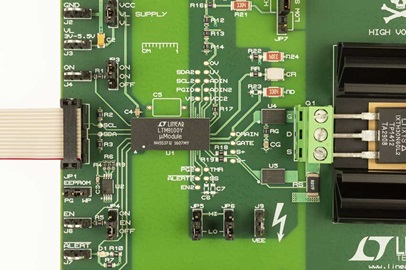

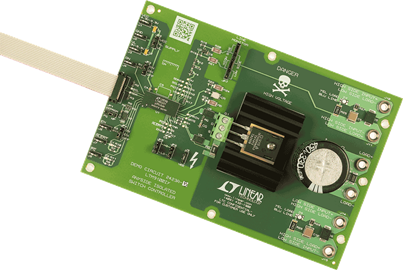

Evaluation Kits (2)
Documentation & Resources
-
R597 Reliability Data3/26/2018
-

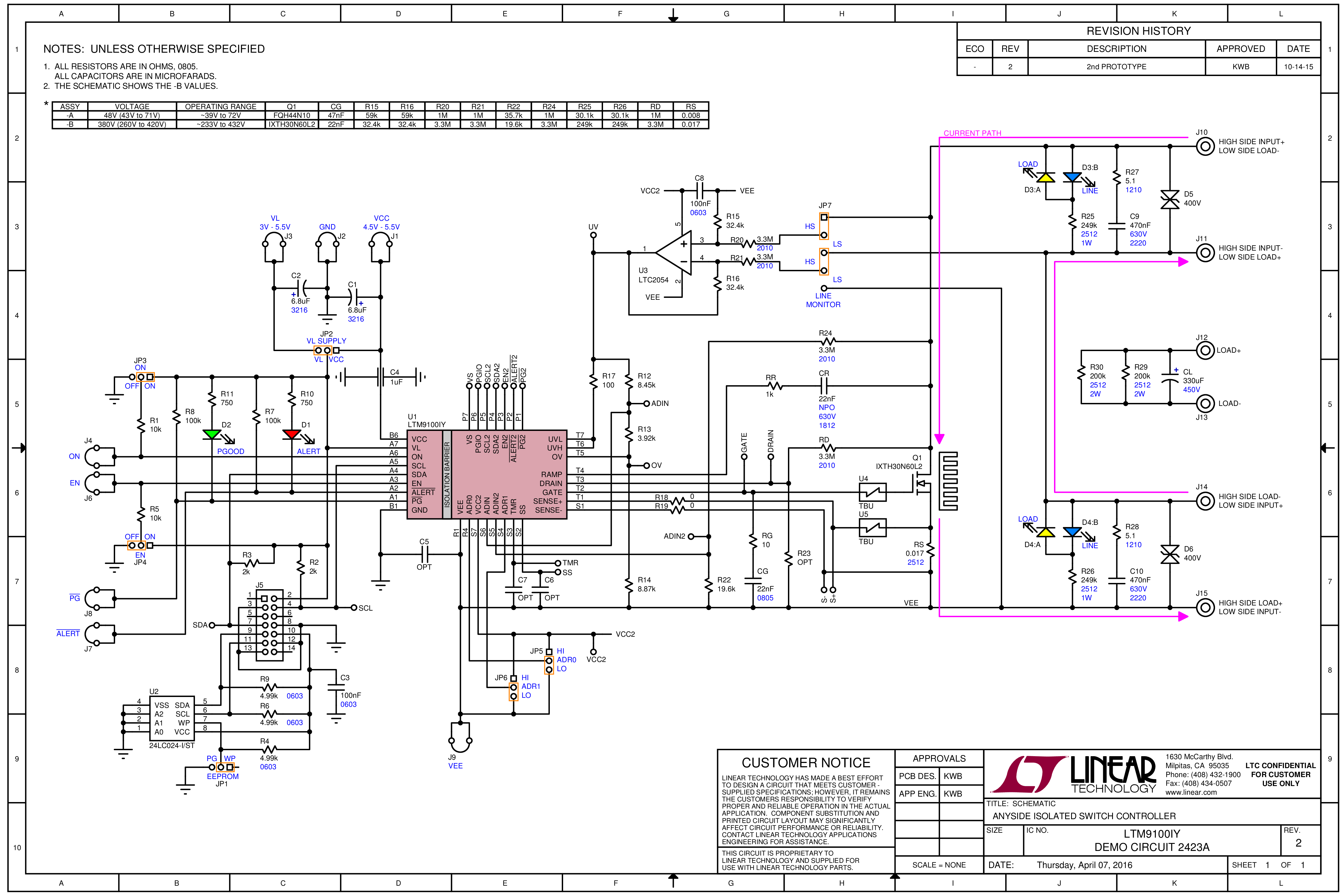

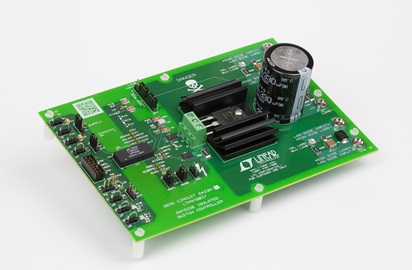

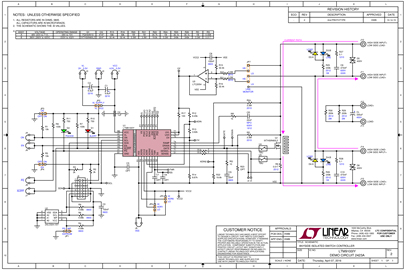

DC2423A - Demo Manual3/8/2017
-
Hot Swap Controllers8/2/2023
-
Digital Isolator Product Selection Guide10/3/2017
-
5kVRMS Isolated Switch Controller with Telemetry7/26/2017
Tools & Simulations
LTspice

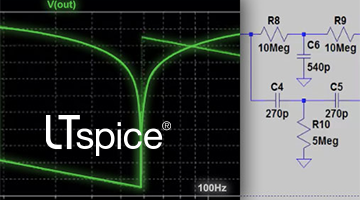

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LTM9100
Linduino

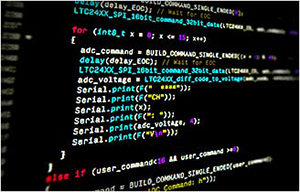

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.
