Overview
Features and Benefits

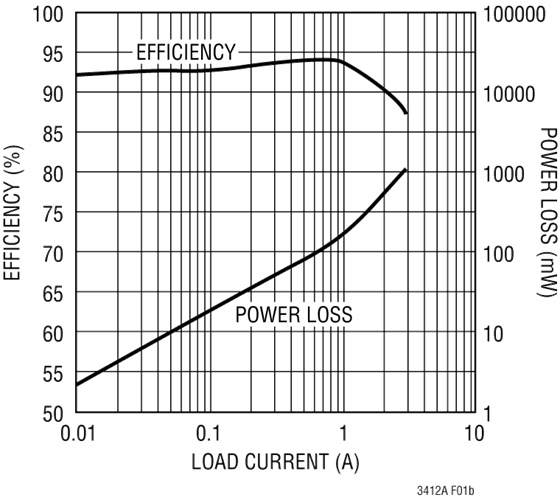

- High Efficiency: Up to 95%
- 3A Output Current
- Low Quiescent Current: 64μA
- Low RDS(ON) Internal Switch: 77mΩ
- 2.25V to 5.5V Input Voltage Range
- Programmable Frequency: 300kHz to 4MHz
- ±2% Output Voltage Accuracy
- 0.8V Reference Allows Low Output Voltage
- Selectable Forced Continuous/Burst Mode® Operation with Adjustable Burst Clamp
- Synchronizable Switching Frequency
- Low Dropout Operation: 100% Duty Cycle
- Power Good Output Voltage Monitor
- Overtemperature Protected

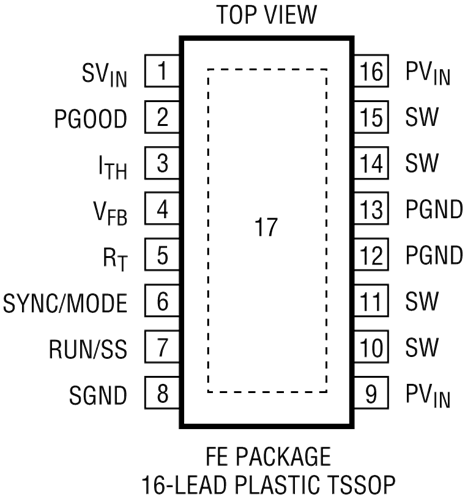

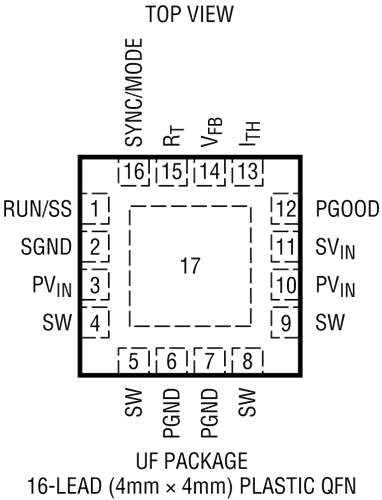

- Available in 16-Lead Exposed Pad TSSOP and QFN Packages
Product Details

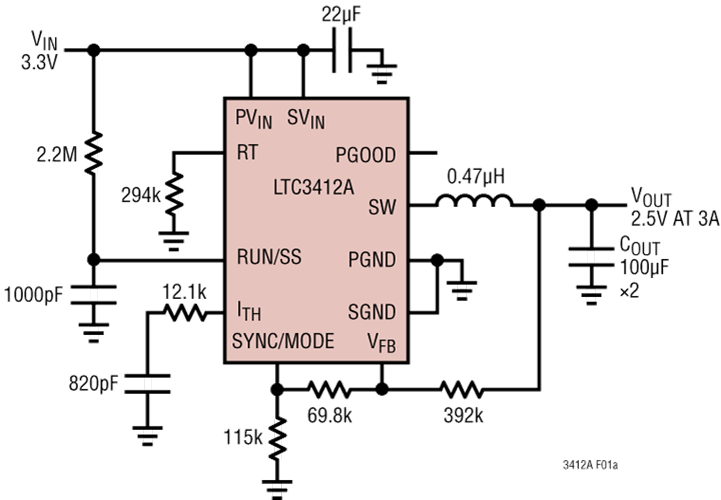

The LTC3412A is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 3A of output current. The internal synchronous power switch with 77mΩ on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. 100% duty cycle provides low dropout operation extending battery life in portable systems. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of loads and output capacitors.
The LTC3412A can be configured for either Burst Mode operation or forced continuous operation. Forced continuous operation reduces noise and RF interference while Burst Mode operation provides high efficiency by reducing gate charge losses at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the application requirements.
APPLICATIONS
- Point-of-Load Regulation
- Notebook Computers
- Portable Instruments
- Distributed Power Systems
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R457 Reliability Data3/26/2018
-
DC652A - Demo Manual9/24/2009
-
3A Monolithic Buck Regulator in 4mm × 4mm QFN3/1/2006 LT Journal
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
To launch ready-to-run LTspice demonstration circuits for this part:
Step 1: Download and install LTspice on your computer.
Step 2: Click on the link in the section below to download a demonstration circuit.
Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
Models for the following parts are available in LTspice:
LTC3412
LTC3412A
LTpowerCAD
LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.
To open the project file for this circuit:
Step 1: Download and install LTpowerCAD on your computer.
Step 2: Click on the link(s) in the section below to download part-specific project files.
Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.
LTpowerCAD Project Files
Design tools for the following parts are available in LTpowerCAD:
LTC3412
LTC3412A
Product Recommendations
LTC3412A Companion Parts
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LTC3412AEFE#PBF | Material Declaration | Reliability Data | 16-Lead TSSOP w/ EP | |
| LTC3412AEFE#TRPBF | Material Declaration | Reliability Data | 16-Lead TSSOP w/ EP | |
| LTC3412AEUF#PBF | Material Declaration | Reliability Data | 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3412AEUF#TRPBF | Material Declaration | Reliability Data | 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3412AIFE#PBF | Material Declaration | Reliability Data | 16-Lead TSSOP w/ EP | |
| LTC3412AIFE#TRPBF | Material Declaration | Reliability Data | 16-Lead TSSOP w/ EP | |
| LTC3412AIUF#PBF | Material Declaration | Reliability Data | 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3412AIUF#TRPBF | Material Declaration | Reliability Data | 16-Lead QFN (4mm x 4mm x 0.75mm w/ EP) | |
| LTC3412AMPFE#PBF | Material Declaration | Reliability Data | 16-Lead TSSOP w/ EP | |
| LTC3412AMPFE#TRPBF | Material Declaration | Reliability Data | 16-Lead TSSOP w/ EP | |
| Wafer Fabrication Data | R457 Reliability Data |
